View Issue Details

IDProjectCategoryView StatusLast Update
0006693Kali LinuxKali Package Bugpublic2020-12-01 10:48
Reporterabajo Assigned Tosbrun
PrioritynormalSeverityblockReproducibilityalways
Status resolvedResolutionfixed
Product Version2020.3
Summary0006693: Block osmocom sink is broken in gnuradio-companion : unable to emit, makes gnuradio useless
Description

When trying to compile a graph with block "osmocom sink", raises an error about undefined parameters :

Here is the error log :
<<< Welcome to GNU Radio Companion 3.8.1.0 >>>

Block paths:
/usr/share/gnuradio/grc/blocks

Loading: "/root/gnuradio/replay-hackrf-one.grc"

Done

Loading: "/root/gnuradio/test-osmo.grc"

Done

Generating: '/root/gnuradio/test_osmo.py'
Generate Error: (NameError("'dc_offset_mode28' is not defined"), 'osmosdr.sink(\n args="numchan=" + str(${nchan}) + " " + ${args}\n)\n% if context.get(\'num_mboards\')() > 0:\n% if context.get(\'clock_source0\')():\nself.${id}.set_clock_source(${clock_source0}, 0)\n% endif\n% if context.get(\'time_source0\')():\nself.${id}.set_time_source(${time_source0}, 0)\n% endif\n% endif\n% if context.get(\'num_mboards\')() > 1:\n% if context.get(\'clock_source1\')():\nself.${id}.set_clock_source(${clock_source1}, 1)\n% endif\n% if context.get(\'time_source1\')():\nself.${id}.set_time_source(${time_source1}, 1)\n% endif\n% endif\n% if context.get(\'num_mboards\')() > 2:\n% if context.get(\'clock_source2\')():\nself.${id}.set_clock_source(${clock_source2}, 2)\n% endif\n% if context.get(\'time_source2\')():\nself.${id}.set_time_source(${time_source2}, 2)\n% endif\n% endif\n% if context.get(\'num_mboards\')() > 3:\n% if context.get(\'clock_source3\')():\nself.${id}.set_clock_source(${clock_source3}, 3)\n% endif\n% if context.get(\'time_source3\')():\nself.${id}.set_time_source(${time_source3}, 3)\n% endif\n% endif\n% if context.get(\'num_mboards\')() > 4:\n% if context.get(\'clock_source4\')():\nself.${id}.set_clock_source(${clock_source4}, 4)\n% endif\n% if context.get(\'time_source4\')():\nself.${id}.set_time_source(${time_source4}, 4)\n% endif\n% endif\n% if context.get(\'num_mboards\')() > 5:\n% if context.get(\'clock_source5\')():\nself.${id}.set_clock_source(${clock_source5}, 5)\n% endif\n% if context.get(\'time_source5\')():\nself.${id}.set_time_source(${time_source5}, 5)\n% endif\n% endif\n% if context.get(\'num_mboards\')() > 6:\n% if context.get(\'clock_source6\')():\nself.${id}.set_clock_source(${clock_source6}, 6)\n% endif\n% if context.get(\'time_source6\')():\nself.${id}.set_time_source(${time_source6}, 6)\n% endif\n% endif\n% if context.get(\'num_mboards\')() > 7:\n% if context.get(\'clock_source7\')():\nself.${id}.set_clock_source(${clock_source7}, 7)\n% endif\n% if context.get(\'time_source7\')():\nself.${id}.set_time_source(${time_source7}, 7)\n% endif\n% endif\n% if sync == \'sync\':\nself.${id}.set_time_unknown_pps(osmosdr.time_spec_t())\n% elif sync == \'pc_clock\':\nself.${id}.set_time_now(osmosdr.time_spec_t(time.time()), osmosdr.ALL_MBOARDS)\n% endif\nself.${id}.set_sample_rate(${sample_rate})\n% if context.get(\'nchan\')() > 0:\nself.${id}.set_center_freq(${freq0}, 0)\nself.${id}.set_freq_corr(${corr0}, 0)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode0}, 0)\nself.${id}.set_iq_balance_mode(${iq_balance_mode0}, 0)\nself.${id}.set_gain_mode(${gain_mode0}, 0)\n% endif\nself.${id}.set_gain(${gain0}, 0)\nself.${id}.set_if_gain(${if_gain0}, 0)\nself.${id}.set_bb_gain(${bb_gain0}, 0)\nself.${id}.set_antenna(${ant0}, 0)\nself.${id}.set_bandwidth(${bw0}, 0)\n% endif\n% if context.get(\'nchan\')() > 1:\nself.${id}.set_center_freq(${freq1}, 1)\nself.${id}.set_freq_corr(${corr1}, 1)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode1}, 1)\nself.${id}.set_iq_balance_mode(${iq_balance_mode1}, 1)\nself.${id}.set_gain_mode(${gain_mode1}, 1)\n% endif\nself.${id}.set_gain(${gain1}, 1)\nself.${id}.set_if_gain(${if_gain1}, 1)\nself.${id}.set_bb_gain(${bb_gain1}, 1)\nself.${id}.set_antenna(${ant1}, 1)\nself.${id}.set_bandwidth(${bw1}, 1)\n% endif\n% if context.get(\'nchan\')() > 2:\nself.${id}.set_center_freq(${freq2}, 2)\nself.${id}.set_freq_corr(${corr2}, 2)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode2}, 2)\nself.${id}.set_iq_balance_mode(${iq_balance_mode2}, 2)\nself.${id}.set_gain_mode(${gain_mode2}, 2)\n% endif\nself.${id}.set_gain(${gain2}, 2)\nself.${id}.set_if_gain(${if_gain2}, 2)\nself.${id}.set_bb_gain(${bb_gain2}, 2)\nself.${id}.set_antenna(${ant2}, 2)\nself.${id}.set_bandwidth(${bw2}, 2)\n% endif\n% if context.get(\'nchan\')() > 3:\nself.${id}.set_center_freq(${freq3}, 3)\nself.${id}.set_freq_corr(${corr3}, 3)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode3}, 3)\nself.${id}.set_iq_balance_mode(${iq_balance_mode3}, 3)\nself.${id}.set_gain_mode(${gain_mode3}, 3)\n% endif\nself.${id}.set_gain(${gain3}, 3)\nself.${id}.set_if_gain(${if_gain3}, 3)\nself.${id}.set_bb_gain(${bb_gain3}, 3)\nself.${id}.set_antenna(${ant3}, 3)\nself.${id}.set_bandwidth(${bw3}, 3)\n% endif\n% if context.get(\'nchan\')() > 4:\nself.${id}.set_center_freq(${freq4}, 4)\nself.${id}.set_freq_corr(${corr4}, 4)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode4}, 4)\nself.${id}.set_iq_balance_mode(${iq_balance_mode4}, 4)\nself.${id}.set_gain_mode(${gain_mode4}, 4)\n% endif\nself.${id}.set_gain(${gain4}, 4)\nself.${id}.set_if_gain(${if_gain4}, 4)\nself.${id}.set_bb_gain(${bb_gain4}, 4)\nself.${id}.set_antenna(${ant4}, 4)\nself.${id}.set_bandwidth(${bw4}, 4)\n% endif\n% if context.get(\'nchan\')() > 5:\nself.${id}.set_center_freq(${freq5}, 5)\nself.${id}.set_freq_corr(${corr5}, 5)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode5}, 5)\nself.${id}.set_iq_balance_mode(${iq_balance_mode5}, 5)\nself.${id}.set_gain_mode(${gain_mode5}, 5)\n% endif\nself.${id}.set_gain(${gain5}, 5)\nself.${id}.set_if_gain(${if_gain5}, 5)\nself.${id}.set_bb_gain(${bb_gain5}, 5)\nself.${id}.set_antenna(${ant5}, 5)\nself.${id}.set_bandwidth(${bw5}, 5)\n% endif\n% if context.get(\'nchan\')() > 6:\nself.${id}.set_center_freq(${freq6}, 6)\nself.${id}.set_freq_corr(${corr6}, 6)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode6}, 6)\nself.${id}.set_iq_balance_mode(${iq_balance_mode6}, 6)\nself.${id}.set_gain_mode(${gain_mode6}, 6)\n% endif\nself.${id}.set_gain(${gain6}, 6)\nself.${id}.set_if_gain(${if_gain6}, 6)\nself.${id}.set_bb_gain(${bb_gain6}, 6)\nself.${id}.set_antenna(${ant6}, 6)\nself.${id}.set_bandwidth(${bw6}, 6)\n% endif\n% if context.get(\'nchan\')() > 7:\nself.${id}.set_center_freq(${freq7}, 7)\nself.${id}.set_freq_corr(${corr7}, 7)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode7}, 7)\nself.${id}.set_iq_balance_mode(${iq_balance_mode7}, 7)\nself.${id}.set_gain_mode(${gain_mode7}, 7)\n% endif\nself.${id}.set_gain(${gain7}, 7)\nself.${id}.set_if_gain(${if_gain7}, 7)\nself.${id}.set_bb_gain(${bb_gain7}, 7)\nself.${id}.set_antenna(${ant7}, 7)\nself.${id}.set_bandwidth(${bw7}, 7)\n% endif\n% if context.get(\'nchan\')() > 8:\nself.${id}.set_center_freq(${freq8}, 8)\nself.${id}.set_freq_corr(${corr8}, 8)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode8}, 8)\nself.${id}.set_iq_balance_mode(${iq_balance_mode8}, 8)\nself.${id}.set_gain_mode(${gain_mode8}, 8)\n% endif\nself.${id}.set_gain(${gain8}, 8)\nself.${id}.set_if_gain(${if_gain8}, 8)\nself.${id}.set_bb_gain(${bb_gain8}, 8)\nself.${id}.set_antenna(${ant8}, 8)\nself.${id}.set_bandwidth(${bw8}, 8)\n% endif\n% if context.get(\'nchan\')() > 9:\nself.${id}.set_center_freq(${freq9}, 9)\nself.${id}.set_freq_corr(${corr9}, 9)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode9}, 9)\nself.${id}.set_iq_balance_mode(${iq_balance_mode9}, 9)\nself.${id}.set_gain_mode(${gain_mode9}, 9)\n% endif\nself.${id}.set_gain(${gain9}, 9)\nself.${id}.set_if_gain(${if_gain9}, 9)\nself.${id}.set_bb_gain(${bb_gain9}, 9)\nself.${id}.set_antenna(${ant9}, 9)\nself.${id}.set_bandwidth(${bw9}, 9)\n% endif\n% if context.get(\'nchan\')() > 10:\nself.${id}.set_center_freq(${freq10}, 10)\nself.${id}.set_freq_corr(${corr10}, 10)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode10}, 10)\nself.${id}.set_iq_balance_mode(${iq_balance_mode10}, 10)\nself.${id}.set_gain_mode(${gain_mode10}, 10)\n% endif\nself.${id}.set_gain(${gain10}, 10)\nself.${id}.set_if_gain(${if_gain10}, 10)\nself.${id}.set_bb_gain(${bb_gain10}, 10)\nself.${id}.set_antenna(${ant10}, 10)\nself.${id}.set_bandwidth(${bw10}, 10)\n% endif\n% if context.get(\'nchan\')() > 11:\nself.${id}.set_center_freq(${freq11}, 11)\nself.${id}.set_freq_corr(${corr11}, 11)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode11}, 11)\nself.${id}.set_iq_balance_mode(${iq_balance_mode11}, 11)\nself.${id}.set_gain_mode(${gain_mode11}, 11)\n% endif\nself.${id}.set_gain(${gain11}, 11)\nself.${id}.set_if_gain(${if_gain11}, 11)\nself.${id}.set_bb_gain(${bb_gain11}, 11)\nself.${id}.set_antenna(${ant11}, 11)\nself.${id}.set_bandwidth(${bw11}, 11)\n% endif\n% if context.get(\'nchan\')() > 12:\nself.${id}.set_center_freq(${freq12}, 12)\nself.${id}.set_freq_corr(${corr12}, 12)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode12}, 12)\nself.${id}.set_iq_balance_mode(${iq_balance_mode12}, 12)\nself.${id}.set_gain_mode(${gain_mode12}, 12)\n% endif\nself.${id}.set_gain(${gain12}, 12)\nself.${id}.set_if_gain(${if_gain12}, 12)\nself.${id}.set_bb_gain(${bb_gain12}, 12)\nself.${id}.set_antenna(${ant12}, 12)\nself.${id}.set_bandwidth(${bw12}, 12)\n% endif\n% if context.get(\'nchan\')() > 13:\nself.${id}.set_center_freq(${freq13}, 13)\nself.${id}.set_freq_corr(${corr13}, 13)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode13}, 13)\nself.${id}.set_iq_balance_mode(${iq_balance_mode13}, 13)\nself.${id}.set_gain_mode(${gain_mode13}, 13)\n% endif\nself.${id}.set_gain(${gain13}, 13)\nself.${id}.set_if_gain(${if_gain13}, 13)\nself.${id}.set_bb_gain(${bb_gain13}, 13)\nself.${id}.set_antenna(${ant13}, 13)\nself.${id}.set_bandwidth(${bw13}, 13)\n% endif\n% if context.get(\'nchan\')() > 14:\nself.${id}.set_center_freq(${freq14}, 14)\nself.${id}.set_freq_corr(${corr14}, 14)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode14}, 14)\nself.${id}.set_iq_balance_mode(${iq_balance_mode14}, 14)\nself.${id}.set_gain_mode(${gain_mode14}, 14)\n% endif\nself.${id}.set_gain(${gain14}, 14)\nself.${id}.set_if_gain(${if_gain14}, 14)\nself.${id}.set_bb_gain(${bb_gain14}, 14)\nself.${id}.set_antenna(${ant14}, 14)\nself.${id}.set_bandwidth(${bw14}, 14)\n% endif\n% if context.get(\'nchan\')() > 15:\nself.${id}.set_center_freq(${freq15}, 15)\nself.${id}.set_freq_corr(${corr15}, 15)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode15}, 15)\nself.${id}.set_iq_balance_mode(${iq_balance_mode15}, 15)\nself.${id}.set_gain_mode(${gain_mode15}, 15)\n% endif\nself.${id}.set_gain(${gain15}, 15)\nself.${id}.set_if_gain(${if_gain15}, 15)\nself.${id}.set_bb_gain(${bb_gain15}, 15)\nself.${id}.set_antenna(${ant15}, 15)\nself.${id}.set_bandwidth(${bw15}, 15)\n% endif\n% if context.get(\'nchan\')() > 16:\nself.${id}.set_center_freq(${freq16}, 16)\nself.${id}.set_freq_corr(${corr16}, 16)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode16}, 16)\nself.${id}.set_iq_balance_mode(${iq_balance_mode16}, 16)\nself.${id}.set_gain_mode(${gain_mode16}, 16)\n% endif\nself.${id}.set_gain(${gain16}, 16)\nself.${id}.set_if_gain(${if_gain16}, 16)\nself.${id}.set_bb_gain(${bb_gain16}, 16)\nself.${id}.set_antenna(${ant16}, 16)\nself.${id}.set_bandwidth(${bw16}, 16)\n% endif\n% if context.get(\'nchan\')() > 17:\nself.${id}.set_center_freq(${freq17}, 17)\nself.${id}.set_freq_corr(${corr17}, 17)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode17}, 17)\nself.${id}.set_iq_balance_mode(${iq_balance_mode17}, 17)\nself.${id}.set_gain_mode(${gain_mode17}, 17)\n% endif\nself.${id}.set_gain(${gain17}, 17)\nself.${id}.set_if_gain(${if_gain17}, 17)\nself.${id}.set_bb_gain(${bb_gain17}, 17)\nself.${id}.set_antenna(${ant17}, 17)\nself.${id}.set_bandwidth(${bw17}, 17)\n% endif\n% if context.get(\'nchan\')() > 18:\nself.${id}.set_center_freq(${freq18}, 18)\nself.${id}.set_freq_corr(${corr18}, 18)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode18}, 18)\nself.${id}.set_iq_balance_mode(${iq_balance_mode18}, 18)\nself.${id}.set_gain_mode(${gain_mode18}, 18)\n% endif\nself.${id}.set_gain(${gain18}, 18)\nself.${id}.set_if_gain(${if_gain18}, 18)\nself.${id}.set_bb_gain(${bb_gain18}, 18)\nself.${id}.set_antenna(${ant18}, 18)\nself.${id}.set_bandwidth(${bw18}, 18)\n% endif\n% if context.get(\'nchan\')() > 19:\nself.${id}.set_center_freq(${freq19}, 19)\nself.${id}.set_freq_corr(${corr19}, 19)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode19}, 19)\nself.${id}.set_iq_balance_mode(${iq_balance_mode19}, 19)\nself.${id}.set_gain_mode(${gain_mode19}, 19)\n% endif\nself.${id}.set_gain(${gain19}, 19)\nself.${id}.set_if_gain(${if_gain19}, 19)\nself.${id}.set_bb_gain(${bb_gain19}, 19)\nself.${id}.set_antenna(${ant19}, 19)\nself.${id}.set_bandwidth(${bw19}, 19)\n% endif\n% if context.get(\'nchan\')() > 20:\nself.${id}.set_center_freq(${freq20}, 20)\nself.${id}.set_freq_corr(${corr20}, 20)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode20}, 20)\nself.${id}.set_iq_balance_mode(${iq_balance_mode20}, 20)\nself.${id}.set_gain_mode(${gain_mode20}, 20)\n% endif\nself.${id}.set_gain(${gain20}, 20)\nself.${id}.set_if_gain(${if_gain20}, 20)\nself.${id}.set_bb_gain(${bb_gain20}, 20)\nself.${id}.set_antenna(${ant20}, 20)\nself.${id}.set_bandwidth(${bw20}, 20)\n% endif\n% if context.get(\'nchan\')() > 21:\nself.${id}.set_center_freq(${freq21}, 21)\nself.${id}.set_freq_corr(${corr21}, 21)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode21}, 21)\nself.${id}.set_iq_balance_mode(${iq_balance_mode21}, 21)\nself.${id}.set_gain_mode(${gain_mode21}, 21)\n% endif\nself.${id}.set_gain(${gain21}, 21)\nself.${id}.set_if_gain(${if_gain21}, 21)\nself.${id}.set_bb_gain(${bb_gain21}, 21)\nself.${id}.set_antenna(${ant21}, 21)\nself.${id}.set_bandwidth(${bw21}, 21)\n% endif\n% if context.get(\'nchan\')() > 22:\nself.${id}.set_center_freq(${freq22}, 22)\nself.${id}.set_freq_corr(${corr22}, 22)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode22}, 22)\nself.${id}.set_iq_balance_mode(${iq_balance_mode22}, 22)\nself.${id}.set_gain_mode(${gain_mode22}, 22)\n% endif\nself.${id}.set_gain(${gain22}, 22)\nself.${id}.set_if_gain(${if_gain22}, 22)\nself.${id}.set_bb_gain(${bb_gain22}, 22)\nself.${id}.set_antenna(${ant22}, 22)\nself.${id}.set_bandwidth(${bw22}, 22)\n% endif\n% if context.get(\'nchan\')() > 23:\nself.${id}.set_center_freq(${freq23}, 23)\nself.${id}.set_freq_corr(${corr23}, 23)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode23}, 23)\nself.${id}.set_iq_balance_mode(${iq_balance_mode23}, 23)\nself.${id}.set_gain_mode(${gain_mode23}, 23)\n% endif\nself.${id}.set_gain(${gain23}, 23)\nself.${id}.set_if_gain(${if_gain23}, 23)\nself.${id}.set_bb_gain(${bb_gain23}, 23)\nself.${id}.set_antenna(${ant23}, 23)\nself.${id}.set_bandwidth(${bw23}, 23)\n% endif\n% if context.get(\'nchan\')() > 24:\nself.${id}.set_center_freq(${freq24}, 24)\nself.${id}.set_freq_corr(${corr24}, 24)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode24}, 24)\nself.${id}.set_iq_balance_mode(${iq_balance_mode24}, 24)\nself.${id}.set_gain_mode(${gain_mode24}, 24)\n% endif\nself.${id}.set_gain(${gain24}, 24)\nself.${id}.set_if_gain(${if_gain24}, 24)\nself.${id}.set_bb_gain(${bb_gain24}, 24)\nself.${id}.set_antenna(${ant24}, 24)\nself.${id}.set_bandwidth(${bw24}, 24)\n% endif\n% if context.get(\'nchan\')() > 25:\nself.${id}.set_center_freq(${freq25}, 25)\nself.${id}.set_freq_corr(${corr25}, 25)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode25}, 25)\nself.${id}.set_iq_balance_mode(${iq_balance_mode25}, 25)\nself.${id}.set_gain_mode(${gain_mode25}, 25)\n% endif\nself.${id}.set_gain(${gain25}, 25)\nself.${id}.set_if_gain(${if_gain25}, 25)\nself.${id}.set_bb_gain(${bb_gain25}, 25)\nself.${id}.set_antenna(${ant25}, 25)\nself.${id}.set_bandwidth(${bw25}, 25)\n% endif\n% if context.get(\'nchan\')() > 26:\nself.${id}.set_center_freq(${freq26}, 26)\nself.${id}.set_freq_corr(${corr26}, 26)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode26}, 26)\nself.${id}.set_iq_balance_mode(${iq_balance_mode26}, 26)\nself.${id}.set_gain_mode(${gain_mode26}, 26)\n% endif\nself.${id}.set_gain(${gain26}, 26)\nself.${id}.set_if_gain(${if_gain26}, 26)\nself.${id}.set_bb_gain(${bb_gain26}, 26)\nself.${id}.set_antenna(${ant26}, 26)\nself.${id}.set_bandwidth(${bw26}, 26)\n% endif\n% if context.get(\'nchan\')() > 27:\nself.${id}.set_center_freq(${freq27}, 27)\nself.${id}.set_freq_corr(${corr27}, 27)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode27}, 27)\nself.${id}.set_iq_balance_mode(${iq_balance_mode27}, 27)\nself.${id}.set_gain_mode(${gain_mode27}, 27)\n% endif\nself.${id}.set_gain(${gain27}, 27)\nself.${id}.set_if_gain(${if_gain27}, 27)\nself.${id}.set_bb_gain(${bb_gain27}, 27)\nself.${id}.set_antenna(${ant27}, 27)\nself.${id}.set_bandwidth(${bw27}, 27)\n% endif\n% if context.get(\'nchan\')() > 28:\nself.${id}.set_center_freq(${freq28}, 28)\nself.${id}.set_freq_corr(${corr28}, 28)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode28}, 28)\nself.${id}.set_iq_balance_mode(${iq_balance_mode28}, 28)\nself.${id}.set_gain_mode(${gain_mode28}, 28)\n% endif\nself.${id}.set_gain(${gain28}, 28)\nself.${id}.set_if_gain(${if_gain28}, 28)\nself.${id}.set_bb_gain(${bb_gain28}, 28)\nself.${id}.set_antenna(${ant28}, 28)\nself.${id}.set_bandwidth(${bw28}, 28)\n% endif\n% if context.get(\'nchan\')() > 29:\nself.${id}.set_center_freq(${freq29}, 29)\nself.${id}.set_freq_corr(${corr29}, 29)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode29}, 29)\nself.${id}.set_iq_balance_mode(${iq_balance_mode29}, 29)\nself.${id}.set_gain_mode(${gain_mode29}, 29)\n% endif\nself.${id}.set_gain(${gain29}, 29)\nself.${id}.set_if_gain(${if_gain29}, 29)\nself.${id}.set_bb_gain(${bb_gain29}, 29)\nself.${id}.set_antenna(${ant29}, 29)\nself.${id}.set_bandwidth(${bw29}, 29)\n% endif\n% if context.get(\'nchan\')() > 30:\nself.${id}.set_center_freq(${freq30}, 30)\nself.${id}.set_freq_corr(${corr30}, 30)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode30}, 30)\nself.${id}.set_iq_balance_mode(${iq_balance_mode30}, 30)\nself.${id}.set_gain_mode(${gain_mode30}, 30)\n% endif\nself.${id}.set_gain(${gain30}, 30)\nself.${id}.set_if_gain(${if_gain30}, 30)\nself.${id}.set_bb_gain(${bb_gain30}, 30)\nself.${id}.set_antenna(${ant30}, 30)\nself.${id}.set_bandwidth(${bw30}, 30)\n% endif\n% if context.get(\'nchan\')() > 31:\nself.${id}.set_center_freq(${freq31}, 31)\nself.${id}.set_freq_corr(${corr31}, 31)\n% if context.get(\'sourk\') == \'source\':\nself.${id}.set_dc_offset_mode(${dc_offset_mode31}, 31)\nself.${id}.set_iq_balance_mode(${iq_balance_mode31}, 31)\nself.${id}.set_gain_mode(${gain_mode31}, 31)\n% endif\nself.${id}.set_gain(${gain31}, 31)\nself.${id}.set_if_gain(${if_gain31}, 31)\nself.${id}.set_bb_gain(${bb_gain31}, 31)\nself.${id}.set_antenna(${ant31}, 31)\nself.${id}.set_bandwidth(${bw31}, 31)\n% endif\n')

Failure

Steps To Reproduce

Error with any graph including the osmoscom sink

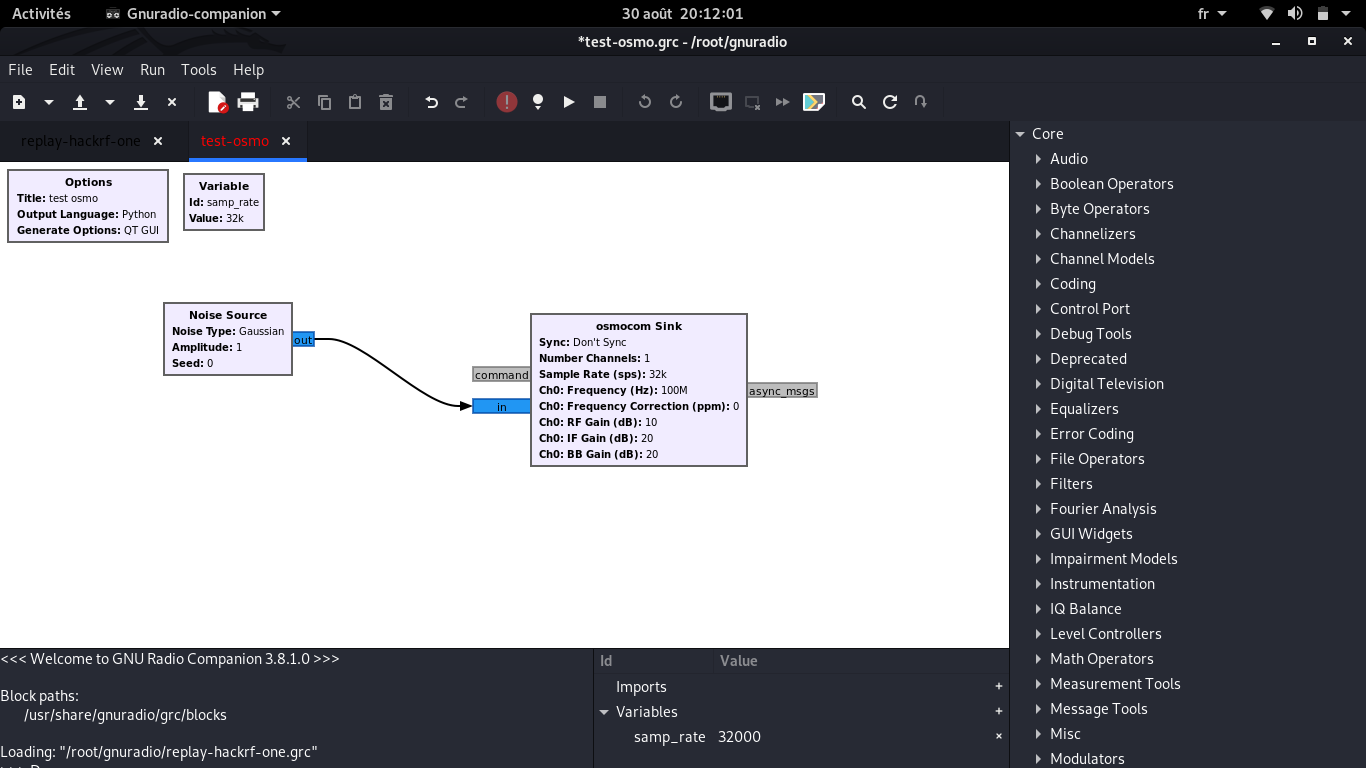

See screenshoot and test graph attached

Additional Information

All gnuradio and osmosdr packages removed, and reinstalled - same effect
No custom or alien packages installed - pure Kali packages

root@kali:~# cat /etc/os-release
PRETTY_NAME="Kali GNU/Linux Rolling"
NAME="Kali GNU/Linux"
ID=kali
VERSION="2020.3"
VERSION_ID="2020.3"
VERSION_CODENAME="kali-rolling"

root@kali:~# apt list --installed | grep gr-osmo

WARNING: apt does not have a stable CLI interface. Use with caution in scripts.

gr-osmosdr/kali-rolling,now 0.2.2-1 amd64 [installé]

root@kali:~# apt list --installed | grep gnuradio

WARNING: apt does not have a stable CLI interface. Use with caution in scripts.

gnuradio-dev/kali-rolling,now 3.8.1.0-4 amd64 [installé, automatique]
gnuradio/kali-rolling,now 3.8.1.0-4 amd64 [installé]

Attached Files
test-osmo.grc (5,854 bytes)
options:
  parameters:
    author: ''
    category: '[GRC Hier Blocks]'
    cmake_opt: ''
    comment: ''
    copyright: ''
    description: ''
    gen_cmake: 'On'
    gen_linking: dynamic
    generate_options: qt_gui
    hier_block_src_path: '.:'
    id: test_osmo
    max_nouts: '0'
    output_language: python
    placement: (0,0)
    qt_qss_theme: ''
    realtime_scheduling: ''
    run: 'True'
    run_command: '{python} -u {filename}'
    run_options: prompt
    sizing_mode: fixed
    thread_safe_setters: ''
    title: test osmo
    window_size: ''
  states:
    bus_sink: false
    bus_source: false
    bus_structure: null
    coordinate: [8, 8]
    rotation: 0
    state: enabled

blocks:
- name: samp_rate
  id: variable
  parameters:
    comment: ''
    value: '32000'
  states:
    bus_sink: false
    bus_source: false
    bus_structure: null
    coordinate: [184, 12]
    rotation: 0
    state: enabled
- name: analog_noise_source_x_0
  id: analog_noise_source_x
  parameters:
    affinity: ''
    alias: ''
    amp: '1'
    comment: ''
    maxoutbuf: '0'
    minoutbuf: '0'
    noise_type: analog.GR_GAUSSIAN
    seed: '0'
    type: complex
  states:
    bus_sink: false
    bus_source: false
    bus_structure: null
    coordinate: [99, 149]
    rotation: 0
    state: true
- name: osmosdr_sink_0
  id: osmosdr_sink
  parameters:
    affinity: ''
    alias: ''
    ant0: ''
    ant1: ''
    ant10: ''
    ant11: ''
    ant12: ''
    ant13: ''
    ant14: ''
    ant15: ''
    ant16: ''
    ant17: ''
    ant18: ''
    ant19: ''
    ant2: ''
    ant20: ''
    ant21: ''
    ant22: ''
    ant23: ''
    ant24: ''
    ant25: ''
    ant26: ''
    ant27: ''
    ant28: ''
    ant29: ''
    ant3: ''
    ant30: ''
    ant31: ''
    ant4: ''
    ant5: ''
    ant6: ''
    ant7: ''
    ant8: ''
    ant9: ''
    args: '""'
    bb_gain0: '20'
    bb_gain1: '20'
    bb_gain10: '20'
    bb_gain11: '20'
    bb_gain12: '20'
    bb_gain13: '20'
    bb_gain14: '20'
    bb_gain15: '20'
    bb_gain16: '20'
    bb_gain17: '20'
    bb_gain18: '20'
    bb_gain19: '20'
    bb_gain2: '20'
    bb_gain20: '20'
    bb_gain21: '20'
    bb_gain22: '20'
    bb_gain23: '20'
    bb_gain24: '20'
    bb_gain25: '20'
    bb_gain26: '20'
    bb_gain27: '20'
    bb_gain28: '20'
    bb_gain29: '20'
    bb_gain3: '20'
    bb_gain30: '20'
    bb_gain31: '20'
    bb_gain4: '20'
    bb_gain5: '20'
    bb_gain6: '20'
    bb_gain7: '20'
    bb_gain8: '20'
    bb_gain9: '20'
    bw0: '0'
    bw1: '0'
    bw10: '0'
    bw11: '0'
    bw12: '0'
    bw13: '0'
    bw14: '0'
    bw15: '0'
    bw16: '0'
    bw17: '0'
    bw18: '0'
    bw19: '0'
    bw2: '0'
    bw20: '0'
    bw21: '0'
    bw22: '0'
    bw23: '0'
    bw24: '0'
    bw25: '0'
    bw26: '0'
    bw27: '0'
    bw28: '0'
    bw29: '0'
    bw3: '0'
    bw30: '0'
    bw31: '0'
    bw4: '0'
    bw5: '0'
    bw6: '0'
    bw7: '0'
    bw8: '0'
    bw9: '0'
    clock_source0: ''
    clock_source1: ''
    clock_source2: ''
    clock_source3: ''
    clock_source4: ''
    clock_source5: ''
    clock_source6: ''
    clock_source7: ''
    comment: ''
    corr0: '0'
    corr1: '0'
    corr10: '0'
    corr11: '0'
    corr12: '0'
    corr13: '0'
    corr14: '0'
    corr15: '0'
    corr16: '0'
    corr17: '0'
    corr18: '0'
    corr19: '0'
    corr2: '0'
    corr20: '0'
    corr21: '0'
    corr22: '0'
    corr23: '0'
    corr24: '0'
    corr25: '0'
    corr26: '0'
    corr27: '0'
    corr28: '0'
    corr29: '0'
    corr3: '0'
    corr30: '0'
    corr31: '0'
    corr4: '0'
    corr5: '0'
    corr6: '0'
    corr7: '0'
    corr8: '0'
    corr9: '0'
    freq0: 100e6
    freq1: 100e6
    freq10: 100e6
    freq11: 100e6
    freq12: 100e6
    freq13: 100e6
    freq14: 100e6
    freq15: 100e6
    freq16: 100e6
    freq17: 100e6
    freq18: 100e6
    freq19: 100e6
    freq2: 100e6
    freq20: 100e6
    freq21: 100e6
    freq22: 100e6
    freq23: 100e6
    freq24: 100e6
    freq25: 100e6
    freq26: 100e6
    freq27: 100e6
    freq28: 100e6
    freq29: 100e6
    freq3: 100e6
    freq30: 100e6
    freq31: 100e6
    freq4: 100e6
    freq5: 100e6
    freq6: 100e6
    freq7: 100e6
    freq8: 100e6
    freq9: 100e6
    gain0: '10'
    gain1: '10'
    gain10: '10'
    gain11: '10'
    gain12: '10'
    gain13: '10'
    gain14: '10'
    gain15: '10'
    gain16: '10'
    gain17: '10'
    gain18: '10'
    gain19: '10'
    gain2: '10'
    gain20: '10'
    gain21: '10'
    gain22: '10'
    gain23: '10'
    gain24: '10'
    gain25: '10'
    gain26: '10'
    gain27: '10'
    gain28: '10'
    gain29: '10'
    gain3: '10'
    gain30: '10'
    gain31: '10'
    gain4: '10'
    gain5: '10'
    gain6: '10'
    gain7: '10'
    gain8: '10'
    gain9: '10'
    if_gain0: '20'
    if_gain1: '20'
    if_gain10: '20'
    if_gain11: '20'
    if_gain12: '20'
    if_gain13: '20'
    if_gain14: '20'
    if_gain15: '20'
    if_gain16: '20'
    if_gain17: '20'
    if_gain18: '20'
    if_gain19: '20'
    if_gain2: '20'
    if_gain20: '20'
    if_gain21: '20'
    if_gain22: '20'
    if_gain23: '20'
    if_gain24: '20'
    if_gain25: '20'
    if_gain26: '20'
    if_gain27: '20'
    if_gain28: '20'
    if_gain29: '20'
    if_gain3: '20'
    if_gain30: '20'
    if_gain31: '20'
    if_gain4: '20'
    if_gain5: '20'
    if_gain6: '20'
    if_gain7: '20'
    if_gain8: '20'
    if_gain9: '20'
    maxoutbuf: '0'
    minoutbuf: '0'
    nchan: '1'
    num_mboards: '1'
    sample_rate: samp_rate
    sync: none
    time_source0: ''
    time_source1: ''
    time_source2: ''
    time_source3: ''
    time_source4: ''
    time_source5: ''
    time_source6: ''
    time_source7: ''
    type: fc32
  states:
    bus_sink: false
    bus_source: false
    bus_structure: null
    coordinate: [531, 152]
    rotation: 0
    state: true

connections:
- [analog_noise_source_x_0, '0', osmosdr_sink_0, '0']

metadata:
  file_format: 1
test-osmo.grc (5,854 bytes)

Activities

abajo

abajo

2020-09-27 12:40

reporter   ~0013499

Fixed in Gnuradio new version
gnuradio-dev/kali-rolling,now 3.8.2.0-2 amd64 [installé, automatique]
gnuradio/kali-rolling,now 3.8.2.0-2 amd64 [installé]

Issue History

Date Modified Username Field Change
2020-08-30 18:25 abajo New Issue
2020-08-30 18:25 abajo File Added: Capture d’écran de 2020-08-30 20-12-01.png
2020-08-30 18:25 abajo File Added: test-osmo.grc
2020-09-27 12:40 abajo Note Added: 0013499
2020-10-05 11:39 sbrun Assigned To => sbrun
2020-10-05 11:39 sbrun Status new => resolved
2020-10-05 11:39 sbrun Resolution open => fixed
2020-12-01 10:48 g0tmi1k Priority high => normal
