View Issue Details

IDProjectCategoryView StatusLast Update
0004558Kali Linux[All Projects] General Bugpublic2018-10-30 11:15
ReporterpadgettAssigned To
Status closedResolutionsuspended
Product Version2018.1
Target VersionFixed in Version
Summary0004558: Attempt to boot Kali 2018-1 or W08 fails on Apollo Lake laptop - Intel N3350/InsiteH2O bios
DescriptionHave Created a number of USB disks from Kali downloads 2018-1 and W08 amd64, regular and KDE using W32DiskImager.

Bootx64 files on USB added to UEFI store in BIOS on both

Have two Acer notebooks, R11 (R3-131T-p344) with Intel N3700 -4 core Braswell and Acer Spin1 (SP111-31N-C4UG) with Intel N3350 -2 core Apollo Lake (later version of R11)

Both able to run Windows 10-64 v1709.

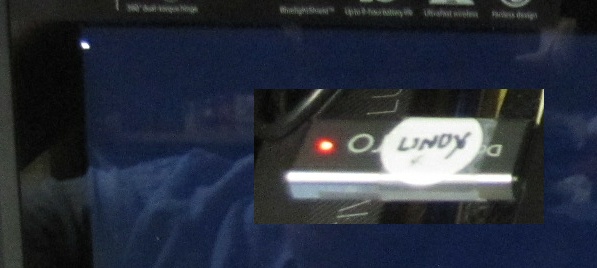

R11 boots normally to menu while Spin1 hangs on initial boot following BIOS (F12) selection: light in USB on and single white dot on upper left of display. Hangs until aborted.

Steps To ReproduceCreate USB using Win32DiskImage and current KALI distribution (e.g. kali-linux-2018.1-amd64.iso).

Add BOOTX64.EFI file to trusted UEFI store in Notebook BIOS.

Attempt to boot from USB (F12) and hangs on current model Acer Spin 1 (Apollo Lake). Works on older model R11 (Braswell)
Additional InformationThis is true of a number of Linux distributions including Ubuntu and Debian. Majaro 17.1.5 is the only Linux distribution that has booted properly on the Spin1.

Have seen comments on net that this may be a GRUB issue.



2018-02-24 16:06

reporter   ~0008805

If any testing is needed, I have several systems including the Apollo Lake Spin 1. However cannot post on the forum since activation e-mail was not received but can send/receive PMs.


2018-02-24 16:12




2018-02-25 14:48




2018-02-25 14:49




2018-02-25 14:55

reporter   ~0008807

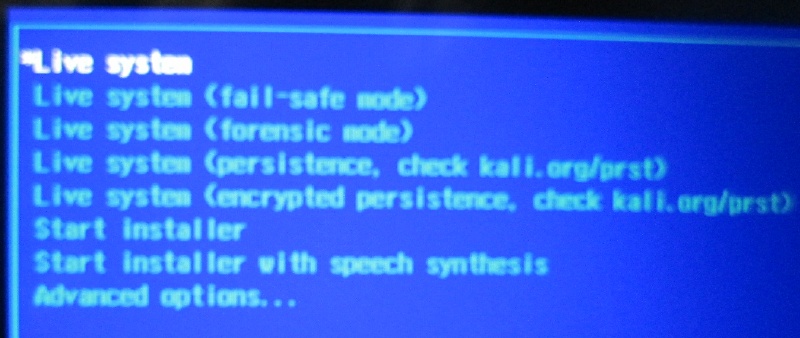

Sunday Feb 25. Downloaded the weekly 2018-W09 update. Now can boot Spin 1 - UEFI gets initial menu after adding Bootx64.efi to store. (09-2.jpg) but fails when a different file is loaded.

Erased UEFI store in BIOS and Kali was able to be selected and load properly (live).

W09 has most of the answer but still requires turning UEFI off by erasing the store.

BTW still am not allowed to post to the forum.


2018-02-26 16:40

reporter   ~0008816

I see nothing in the change log or release notes to explain why w09 now boots on an Apollo Lake notebook(though have to turn UEFI off - see 09-1.jpg). Does anyone know what changed in the boot process ? (Still cannot post to forum).


2018-02-26 20:51

administrator   ~0008818

We did not change anything significant at the Kali level. It might be that something changed in Debian Testing.

We did however upgrade Linux from 4.14.13 to 4.14.17:

(I can't help you with the forum)


2018-02-26 23:02

reporter   ~0008819

Thank you. From the way it was acting I suspect an issue with the BOOTX64.EFI, the w09 is significantly different than w08.

Can boot now but not using UEFI, have to change to legacy.


2018-02-27 07:52

administrator   ~0008820

I think you are mixing UEFI and Secure Boot. The fact that you have to turn "Secure boot" off is expected and normal as we are not providing binaries vetted by Microsoft.

But your 09-1.jpg is still an UEFI boot menu as it's based on grub and not on syslinux (which we use for BIOS boot).


2018-02-27 14:37

reporter   ~0008824

Not confusing, could add the BOOTX64.EFI to the UEFI library and that part booted properly. It was a secondary file that I cannot add to the store that failed (see 09-1.jpg).

With MANJARO (Arch based) all I need to do is to add the BOOTX64 file to the store and the boot proceeds normally even with Secure Boot turned on. So current libraries can add signatures

Tried many distros before posting. Will admit to being somewhat out of date on Linux but started with UNIX a few generations ago and remember when the "free" version of Red Hat became Fedora. Before retirement I used Kali quite a bit to analyze large systems and like its power - why I've spent so much time with it.

Thank you for responding.


2018-03-06 14:58

reporter   ~0008874

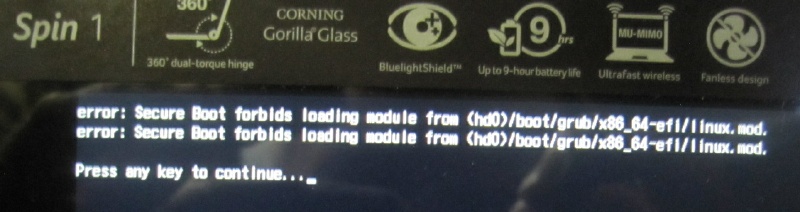

6Mar18: W10 is acting like W09 if bootx64.efi is added to the UEFI store it boots to menu but gives an error as in jpg 09-1. Turning secure boot off by erasing the store in BIOS>Security allows a full live boot.

Saw the note about Kali being in the Windows store - does this mean there is a version signed by Microsoft and can boot with UEFI turned on ? If so can the live version be downloaded from the store ?


2018-03-06 15:02

administrator   ~0008875

Kali in the windows store is based on WSL, you dont boot from it.


2018-10-30 11:15

administrator   ~0009857

Due to the age of the OS (Kali Moto [v1], Kali Safi [v2], Kali Rolling 2016.x/2017.x/2018.1), these legacy versions are no longer supported.
We will be closing this ticket due to inactivity.

Please could you see if you are able to replicate this issue with the latest version of Kali Linux -

If you are still facing the same problem, feel free to re-open the ticket. If you choose to do this, could you provide more information to the issue you are facing, and also give information about your setup?
For more information, please read:
